Everything You Need to Know About Hydraulic Rams

At Global Hydraulic Services we supply, service and repair hydraulic rams for a wide range of industries across Grimsby, Scunthorpe, Middlesbrough and throughout the UK. Whether you’re running agricultural machinery, construction equipment or marine systems, understanding how hydraulic cylinders work and how to maintain them, is vital to keeping your operation moving.

What Is a Hydraulic Ram?

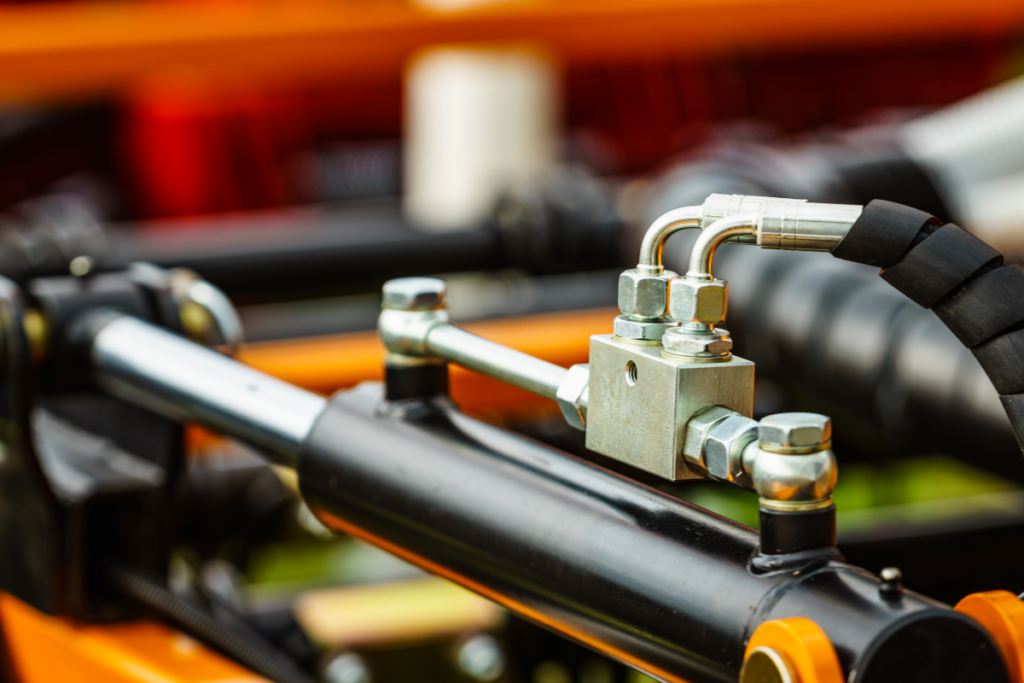

A hydraulic ram is a mechanical actuator that uses pressurised hydraulic fluid (usually oil) to generate linear motion and force. The basic design consists of a cylinder barrel, a piston and a piston rod. When hydraulic fluid enters one side of the cylinder under pressure, it pushes the piston, creating a powerful, controlled movement.

This simple yet effective mechanism is at the heart of countless machines, from diggers and cranes to presses and factory automation systems.

Hydraulic rams are known for their:

• High power-to-weight ratio
• Precision control
• Ability to generate large forces in compact designs
• Long service life when maintained properly

Types of Hydraulic Rams

Hydraulic rams come in a variety of designs, each suited to specific applications. Below are some of the most common types used across UK industries.

Single Acting Hydraulic Rams

A single acting hydraulic ram applies force in one direction only — usually to lift, push, or press. The return motion is achieved through an external force, such as gravity or a spring.

These are commonly used in:

• Agricultural tippers and lifting platforms
• Pressing machinery
• Simple lifting systems

Their simplicity makes them durable, reliable, and cost-effective.

Double Acting Hydraulic Rams

A double acting hydraulic cylinder provides power in both directions. Hydraulic fluid is alternately fed to either side of the piston, allowing for both extension and retraction under full control.

Applications include:

• Industrial presses
• Construction and plant equipment
• Steering systems and marine applications

Because they provide more control and power in both directions, double acting rams are often the preferred choice in modern hydraulic systems.

Welded and Tie-Rod Hydraulic Cylinders

Hydraulic rams can also be categorised by how they are constructed.

• Welded cylinders feature a smooth, compact body and are common in heavy-duty applications such as mobile machinery, forklifts, and construction equipment.
• Tie-rod cylinders use external rods to secure the end caps, making them easier to service. They’re widely used in industrial and manufacturing environments.

Both designs offer excellent performance, but your choice depends on serviceability, space, and pressure requirements.

Typical Uses of Hydraulic Rams

Hydraulic rams play a crucial role in almost every sector that relies on heavy lifting or precise motion control. Common uses include:

• Agriculture: Tractor attachments, balers, spreaders, and tipping trailers
• Construction: Excavators, dumpers, diggers, and plant equipment
• Marine: Steering, lifting hatches, and deck cranes
• Manufacturing: Presses, automation lines, and material handling systems
• Transport and Logistics: Tail lifts, recovery vehicles, and loading equipment

No matter the application, hydraulic cylinders are built for strength, endurance, and consistent performance, provided they are correctly maintained and serviced.

Common Issues with Hydraulic Rams

Even with proper use, hydraulic rams can experience wear and tear over time. Some of the most frequent problems include:

1. Leaking seals: a common issue caused by wear, contamination, or fluid breakdown.
2. Pitted or scored piston rods: often due to dirt ingress or corrosion.
3. Bent rods: resulting from excessive side loading or misalignment.
4. Loss of power or movement: caused by internal leakage or damaged pistons.

Identifying and addressing these issues early can prevent costly breakdowns and prolong your equipment’s lifespan.

Professional Hydraulic Ram Repairs

When a hydraulic ram fails, it’s essential to work with a trusted specialist who understands how to restore it to full working condition.

At Global Hydraulic Services, we provide a comprehensive Hydraulic Ram Repair Service covering all makes, models, and sizes. Our experienced engineers can:

1. Strip down and inspect the hydraulic ram
2. Replace or refurbish rods, pistons, and seals
3. Re-chrome and re-machine damaged components

All work is completed in our fully equipped workshop in Grimsby, with fast turnaround times and strict quality control to ensure lasting performance.

If your ram can’t be removed, we can often carry out on-site hydraulic repairs to minimise downtime.

Preventative Maintenance Tips

To reduce wear and extend the life of your hydraulic rams, we recommend:

• Regularly checking for leaks and damaged seals
• Ensuring rods are clean and free from corrosion
• Replacing hydraulic fluid at recommended intervals
• Avoiding side loading or misalignment
• Scheduling periodic inspections by a professional hydraulic engineer

Preventative maintenance is far more cost-effective than reactive repairs and helps avoid sudden equipment failure.

Why Choose Global Hydraulic Services?

With over 30 years of industry experience, Global Hydraulics is one of the UK’s most trusted providers of hydraulic services. From hydraulic ram repairs to hydraulic hose fittings and DICSA components, we combine technical expertise with a commitment to local, dependable service.

Based in Grimsby, we support customers throughout Lincolnshire, Scunthorpe, Middlesbrough, and across the UK. Our workshop is equipped for complete system overhauls and we’re proud to deliver a level of service that’s as strong as the hydraulics we repair.
